Annex 9: Communication Requirements

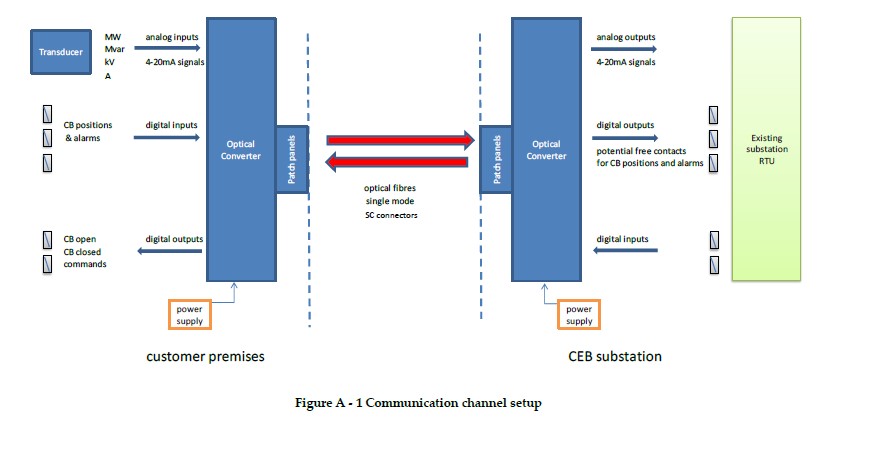

Typical setup of the communication channel between MSDG unit and a CEB regional control center is shown as follows:

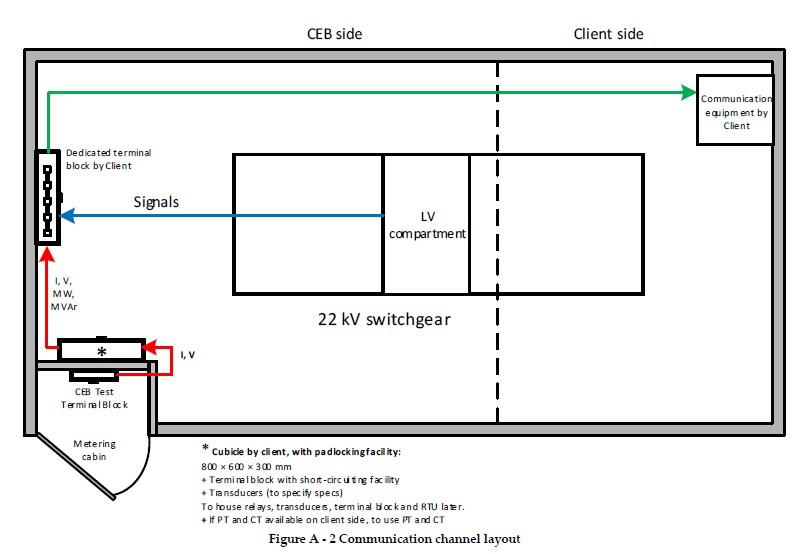

General Layout

Technical Specifications

1. Analog/Digital Fiber Optic Converter

• Minimum of 4 analog channels
• Minimum of 10 digital channels
• 4-20 mA output for analog channels

2. Optical Fiber

• Single mode type
• ST connectors

3. Power Supply

• 48Vdc or 12Vdc
• Minimum 3A capacity

4. Cubicle Dimensions

• Minimum dimensions: 800mm (H) × 600mm (W) × 300mm (D)
